Introduction to HTML

Whole web platform never broke backwards compatability
Very simple and forgiving

HTML Basics

HTML is served to the browser in several ways:
- Can be generated by server-side application and build it depending on request or session data
  - Ex. Rails, Laravel, or Django application
- Can be generated by Javascript client-side application on the fly
- Stored in a file and served to a browser by a web server
HTML is saved in .html files
HTML content is organized using tags
- Ex. <p> Some text </p>
The browser interprets these tags and then presents them in a basic way
- There is no styling done by the browser without CSS
- HTML is more concerned with how things are structured rather than how they look

HTML Page Structure

HTML starts with the document type declaration (doctype)
- Ex. <!DOCTYPE html>
Then have the html element to wrap all the tags
- Ex. <!DOCTYPE html> <html> ... </html>
Tags can either come in pairs as a opening and closing tag
- Ex. <p>Some Text</p>
Tags can also be self-closing, meaning that it cannot contain any text in between it
- Ex. <img src="" />
In the HTML tag, there is a HEAD and BODY
- Ex. <!DOCTYPE html> <html> <head> ... </head> <body> ... </body> </html>
The head contains tags that are essential to creating a webpage
- Title
- Metadata
- CSS / JS links
- Generally the head contains information that is not visible
The body contains the actual content that is visible

Tags vs Elements

Tag is the type of element and the element is the whole package for that piece of the HTML page
Elements have a starting tag and closing tag
- Starting tag
- Text element
- Closing tag

Attributes

Starting tags can have attributes in a "key:value" pair orientation that add additional information to the tag
- Ex. <p class="a-class">Some Text</p>
Common tags are:
- Class - identify HTML elements by a certain class, can have multiple separated by spaces
- Id - identify HTML elements by an Id, this has to be unique within the whole HTML document

White Space

In HTML, the browser parses out all of the whitespace for the content within tags
- Ex. <p>A paragraph of text</p> is the same as <p>_____ A paragraph of text</p>
- "_" is a space
Use CSS property: white-space to change this

Document Heading

Head tag defines elements that define the document properties
Always written before the document body tag

Document Body

Document body contains the elements that define the content of the document

Block vs Inline Elements

HTML elements are split into 2 types:
- Block
  - When positioned in the page, it does not let any elements be next to that element to the left or right
  - These elements "stack" on top of each other
- Inline
  - Can sit next to each other and also within block elements
CSS styling properties are different for both as well
- Block can have their height, width, margin, etc. changed but inline cannot
Block elements can contain other block elements but inline elements cannot contain other inline or block elements

Text Elements

p tag

<p> Some Text </p>
Stands for paragraph element
Cannot contain other paragraph elements or block elements, but can contain inline elements

span tag

<span> Some Text </span>
Inline element that is used within block elements to target using CSS attributes

br tag

<p> Some text <br> A new line </p>
This tag is an inline element that represents a line break

heading tags

h1, h2, h3, h4, h5, h6
<h1> Some Text </h1>
Headings are used for structuring the information of the page as h1 is most important and h6 is least important
Also utilized in SEOs
Are block elements that cannot contain any other elements except text

Code Blocks

Code and pre tags
<pre><code> Some Code </code></pre>
Code elements are wrapped with pre tags because the code element ignores whitespace and line breaks

Lists

3 types of lists:
1. Unordered List
2. Ordered List
3. Definition Lists
Unordered lists are creating using <ul>tag
- Ex. <ul> <li>First</li> <li>Second</li> </ul>
Ordered lists are the same but uses <ol> tag
- Ex. <ol> <li>First</li> <li>Second</li> </ol>
Definition lists are different in that it has a term and definition
- Ex. <dl> <dt>Flavio</dt> <dd>The name</dd> <dt>Copes</dt> <dd>The surname</dd> </dl>

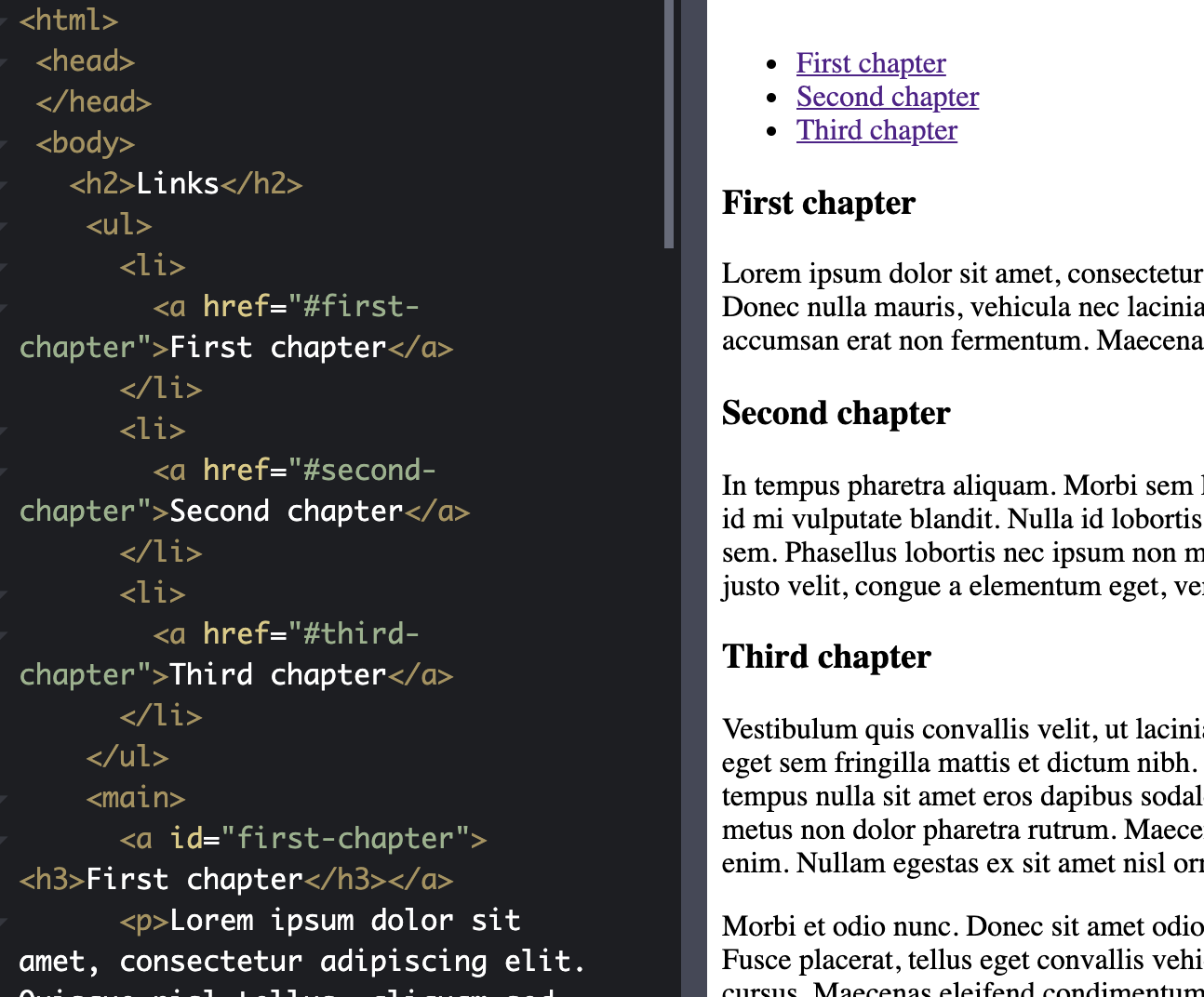

Links

Defined using the <a> tag
The destination of the link is set by the "href" attribute
- Ex. <a href="https://flaviocopes.com">click here</a>
Links work with relative URLs but have a slight nuance
- If there is "/" prepended to the beginning of the path, the browser replaces all of the string starting from the origin with that path
  - Ex. <a href="/test">click here</a> brings you to http://url/test if u were on http://url/other/
- If there is no "/" prepended, it adds the string on top of the current path
  - Ex. <a href="test">click here</a> brings you to http://url/other/test if you were on http://url/other/

Container Tags / Page Structure

These tags are used to separate the sections of the document into structured areas
The main ones used are:
- article
- section
- div
- nav
- aside
- header
- main
- footer
article is used to specify a section can be independent from the other sections
- Inside should have h1-h6 tag and content
section is used to specify a section of the document
- Inside should have a heading tag (h1-h6) and the body
div is the most popular one which is a generic container element
- Often paired with class and id attributes to use for styling

Forms

Forms are the way that you send requests and interact with a page for HTML
By default, sending a form will take you to another URL or reload the page, but this can be mitigated using libraries or AJAX
Forms have an "action" and "method" attribute to determine what type of request and where the request is going
- Ex. <form action="/new-contact" method="POST"> ... </form>
- Forms need some sort of server-side logic to handle the request from the client
- The above example takes the user to /new-contact on the same origin
- If the origin (domain + protocol + port) was http://flaviocopes.com, it will take you to http://flaviocopes.com/new-contact
The data in the form is structured using <input> elements
- There are a lot of types of input elements, but the most common ones are:
  - Text: <input type="text" name="username" placeholder="Your username">
  - Email: <input type="email" name="email" placeholder="Your email">
  - Password: <input type="password" name="password" placeholder="Your password">
For form validation on the client side, one option is to add the "required" attribute to input elements that have to be filled out, or use the type of input to enforce a specific format
- Ex. if input is of type "email" the browser checks that there is a properly formatted email before sending the request

Tables

Define tables using <table> tag
Inside tables are <tr> tags for rows
Inside rows are <td> tags for columns
The first row can have header content which is different by using <th> tags for the columns
Ex.

Column 1	Column 2	Column 3
Row 1 Column 1	Row 1 Column 2	Row 1 Column 3
Row 2 Column 1	Row 2 Column 2	Row 2 Column 3

Rows can span over multiple columns using the "colspan" attribute
Rows can span over multiple rows by using the "rowspan" attribute
Ex.

Column 1	Column 2	Column 3
Rows 1-2 Columns 1-2		Row 1 Column 3
Rows 1-2 Columns 1-2		Row 2 Column 3

For row headings, you can add a <th> tag to the first element inside a <tr> that is not the first <tr> of the table
Ex.

	Column 2	Column 3
Row 1	Col 2	Col 3
Row 2	Col 2	Col 3

Can have additional tags to organize the table:
- thead
- tbody
- tfoot
Ex.

	Column 2	Column 3
Row 1	Col 2	Col 3
Row 2	Col 2	Col 3
	Footer of Col 1	Footer of Col 2

The <caption> element right after <table> can be used to give a caption to the table

Multimedia Elements

You can have <audio> and <video> elements to include audio and video clips
These have specific attributes such as "controls", "autoplay", "loop", etc. to control the functionality of the multimedia when it loads

Iframe

The iframe tag allows for embedding content from other sites into the document (other origins)
Creates a new nested browsing context, meaning anything in the iframe cannot leak towards the parent document
Ex. Codepen, Glitch, and other sites that allow you to code in one part of the page uses iframes.

Images

Displayed using the <img> tag
Element accepts a "src" attribute that determines the image source
- Can be any format for images
- Ex. JPEG, PNG, GIF, SVG
Requires an "alt" attribute for the alternate text that is shown if the image fails to load
- Also used by SEO bots

HTML Exercises

Headers

Have 6 headers to make up the structure of the HTML document
The smaller the number, the more important it is (and bigger)
Typically have one h1 header with multiple h2 headers

Semantic Blog Example

Using semantic headers you can separate sections of the dcoument in a meaningful way

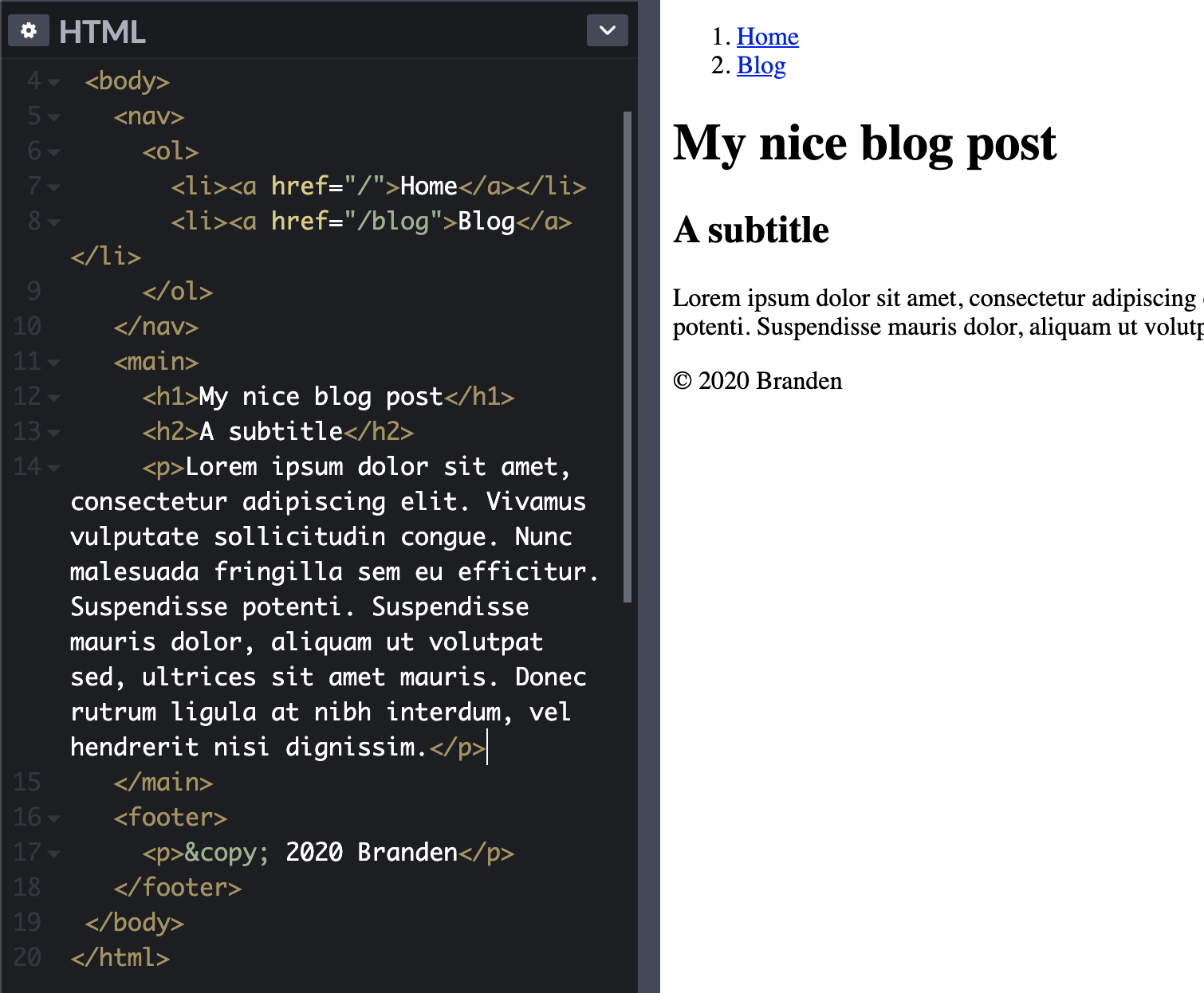

Semantic Structure

Here we can see from the HTML tags that there is a clear navigation, main, and footer section from the <nav>, <main>, and <footer> tags

Formatting Text

Can add special emphasis on texts by utilizing the <strong> (bold) and <em> (italic) tags
Can add separation using <br> and <hr>
Can add quotes by utilizing <blockquote>

Images

Can load images utilizing the <img> tag
Can set specific attributes on it

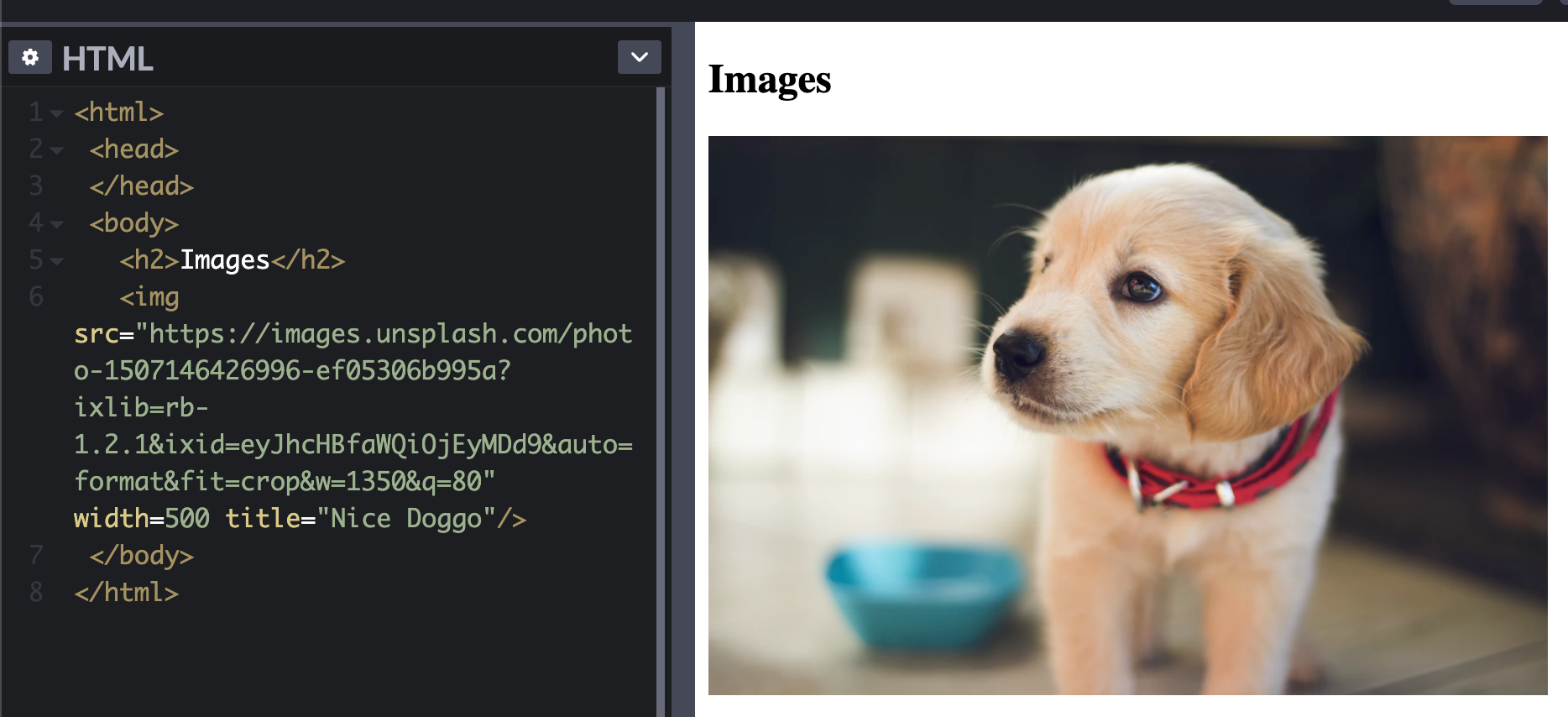

Image Elements

The "width" attribute allows you to specify the width of the image
- Height is automatically set so that the aspect ratio of the original picture is preserved
Try to create images in the exact size that they will be utilized since the browser scales the images, but the original image will still be the same size which could lead to inefficiencies
"alt" provides alternate text if the image fails to load
"title" gives a title of the image when the mouse is hovered over it

Tables

Tables can easily be created using the <table>, <tr> (Table row), <td> (Table column) tags

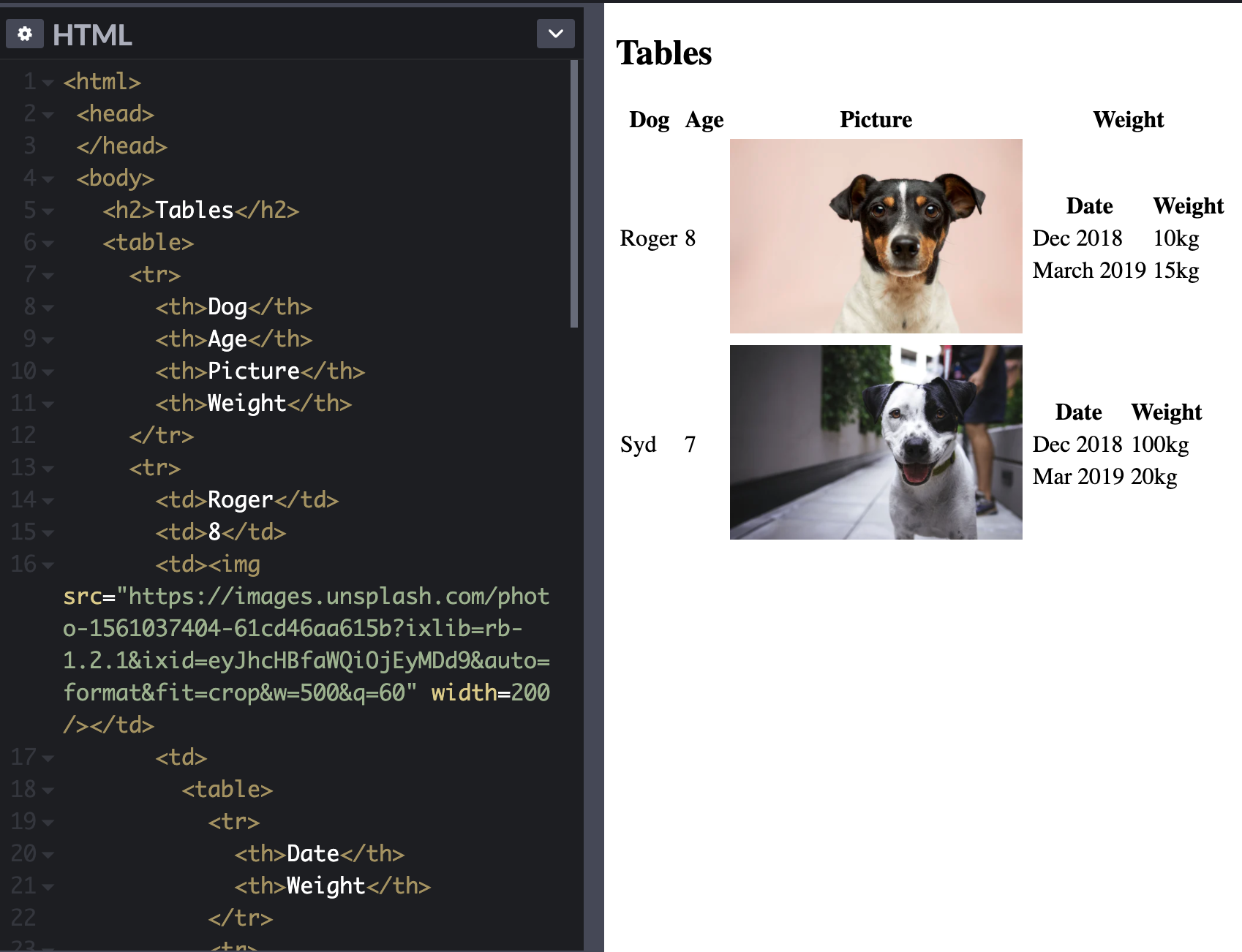

Tables

Tables can have other inline elements inside them such as text and images
Tables can also nest other tables inside them as well

Head Tag Content

In the head, there are a bunch of metadata that you can keep for the page
Can add title with <title> which changes what the name shows up on browser tab
Can add CSS styling and Javascript files
Can also add meta tags that used by the browser, search engines, and social media

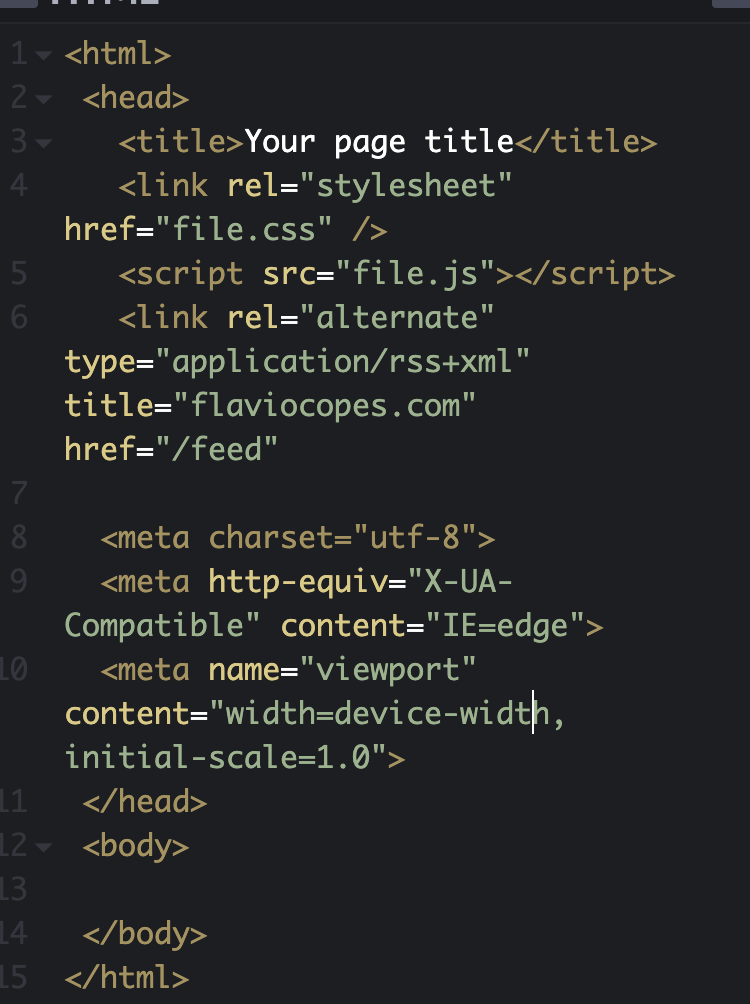

Head Tags

Here the link and the script are referring to external files that are imported by the browser to load CSS and JS

Create a Form

Can create forms using the <form> tag
Forms you define fields in the form of <input> tags
- Many input types to choose from but usually "text" and "submit" are used
- Submit is used to send the request to the server
Forms have a "method" and "action" attribute
- Method chooses what HTTP request method is utilized (default GET)
- Action chooses where to send the request
Fields are inline which mean that they won't be in their own block
- Can wrap <p> tags around each field to give it the block aspect
Can add additional attributes to each input such as "required" which makes the input required

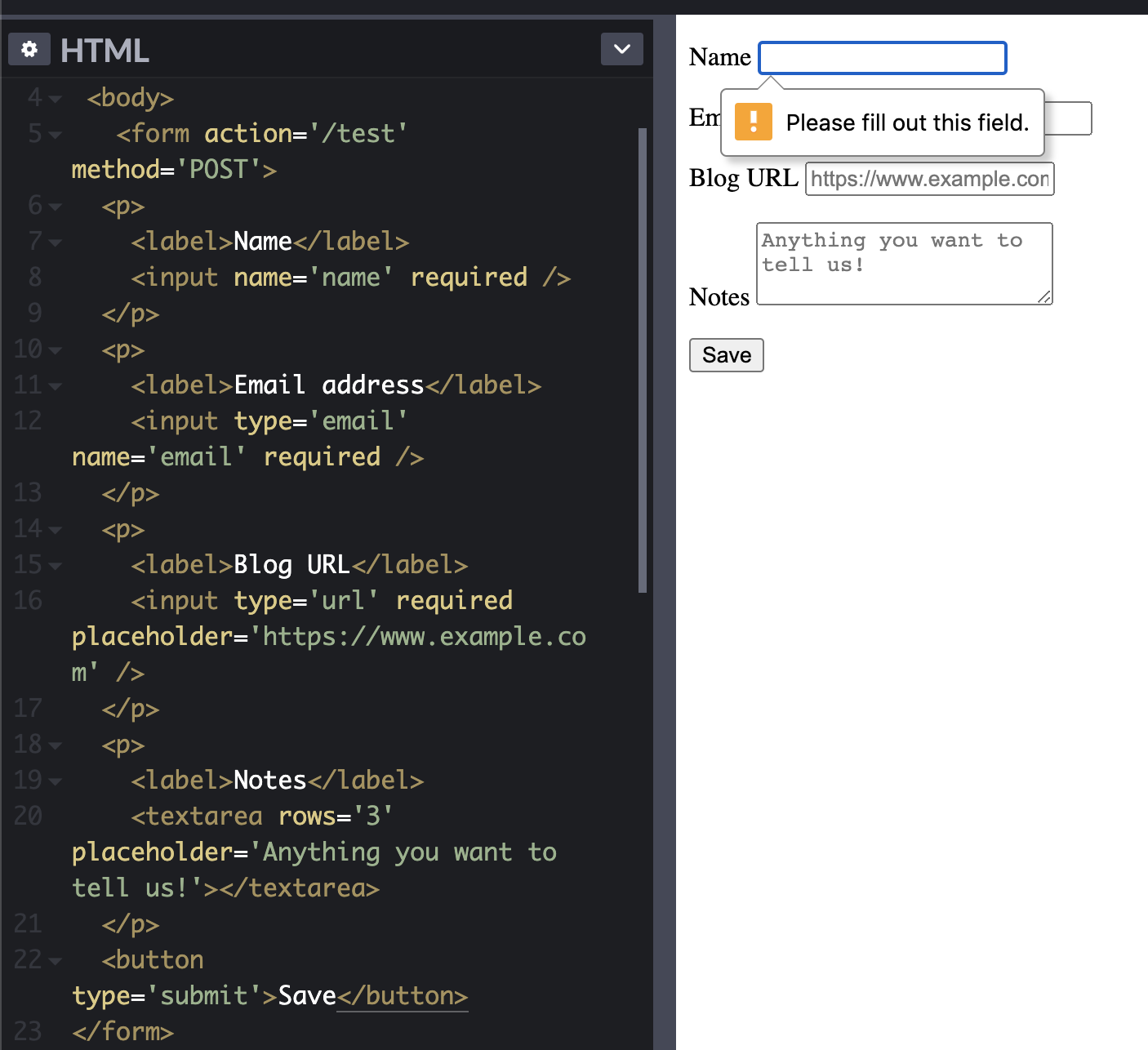

Ex.

Forms

Networking Basics

Networking Basics

Networking Basics

Network is built as a series of layers that start from the very low level information exchange protocols called the Physical Layer
Physical layer contains information for encoding and signaling of data
The Data Link Layer includes protocols like Wi-fi and defines more protocols that provide data framing, addressing, error detection, etc.
Higher level stacks upon each other to provide higher level functionality
Web is built upon stack of protocols called TCP/IP
IP sits on the Network level
TCP and UDP sit at Transport level
HTTP, HTTPS, Websockets are on the Application layer

RFCs

The network protocols are defined by things called RFCs (Request for Comments)
RFCs are community driven documents that undergo heavy revision before publication and define the official protocols to be standards for people that create software implementations

IP, Internet Protocol

IP is the foundation of the internet
IP is defined to create a communication channel between two computers over the network
The protocol defines datagrams which is a way to organize the data
Datagrams have 2 parts:
1. Header - Metadata about the payload, size, authentication, id number on fragment, source and destination IP address
2. Payload - Information to transfer (the data)
When data is transferred from one computer to another, the data is split into fragments where the receiver rebuilds the complete package using the numbering
This is because the packets that are sent are connectionless, meaning they can take many different routes based on what nodes fail or which route is faster. Since the packets can come out of order, there needs to be a way to rebuild it in the correct order
- Intermediate nodes can dynamically alter which next node to send the package to so not all of the packages can arrive at the same time
If all the packets don't arrive then they are all thrown out and the packages need to be resent
Each node in the network (computer) is defined with an IP Address

IP Address

In TCP/IP networks, the nodes are identified using IP Addresses
IP addresses are 4 8-bit numbers separated by dots and correspond to a computer (node) id in a network
Each number ranges from 0-255
- Ex. 212.21.4.28
Everytime the computer connects to a network, a local IP address is created for that computer
This means that without some sort of method such as Port Forwarding, the IP address cannot be reached from outside the network

DNS Domain Name System

Domain Names map a public IP address to a certain String
- Ex. google.com
- Allows for changing the server IP address and company used to host the website without having to tell all the users what new IP address to go to
There is a DNS (Domain Name System) that maps domain names to IP addresses
The DNS is essentially a network of servers and home routers are already pre-configured to reach a specific DNS
The DNS servers received requests sent by the computer and then properly route to their parent DNS
Overall, the system is like a tree where the root DNS is at the top and it knows the IP Addresses of the DNS servers below it which are in charge of the IP addresses for extensions such as .com, .gov, .org, etc.
Then the DNS servers who are in charge of the extensions know the IP address mappings of the domains under it
This process trickles down to get the specific IP address of the server that you are fetching the request from

TCP Protocol

TCP is the transmission control protocol
TCP, unlike IP and UDP, is connection oriented; this means that before transmissions can happen, a connection must be established and the data is sent in little packets
TCP has a process called a handshake when sending data
TCP's main benefit is reliability, the protocol ensures that all of the data is correctly sent or it fails and the process has to restart
Connections happen from process to process where processes are called ports
Ports are associated with an IP address and correspond to certain processes on that IP address
- Ex. localhost:8080, corresponds to the IP address associated with localhost, with process 8080
Some processes like HTTP and HTTPS have their own default ports, which is why when typing in the URL, the port does not need to be specified

UDP Protocol

UDP is the user datagram protocol
Unlike TCP, UDP is transfer based meaning it is connectionless
This means that it is technically faster than TCP as there are less packets that need to be sent
Hoewver, UDP is more unreliable than TCP because there is nothing built into the protocol that ensures that all the data has been sent or received correctly
- Some higher level process that utilizes UDP would have to create this reliability
UDP also uses ports and is the base for the next HTTP, HTTP/3

HTTP

HTML Documents

HTTP was created as a protocol to not only transfer files but also HTML documents in a fail-proof way
HTTP is not secured but a later version, HTTPS, is
HTTP is a language for web browsers (clients) to be able communicate with web servers

HyperLinks

In web browsers, the documents can contain links that point to other documents
- When creating the links, the first part, server IP and protocol is the same, however anything appended after the address is the relative document path
- Ex. https://flaviocopes.com/courses
  1. https is the protocol
  2. flaviocopes.com is the domain name
  3. courses is the document relative path in the server

Requests

Requests require a method (verb), address, and relative pathing or URL
- Ex. GET /axios/ flaviocopes.com
All requests have headers - key : value pairs that are sent to communicate metadata and information to the server
- Required header is Host (the domain name that is being requested)

Communication

The HTTP protocol is stateless, meaning each request is assumed to be independent of each other and any prior request is meaningless
- This makes the server faster as it doesn't need to keep track of the state of the client
- This made HTTP the standard as it was quicker and had less overhead than that of other protocols but was also fail-safe as requests are either completed in its entirety or not failed
Communication happens in the following way:
- ``` GET /a-page HTTP/1.1 Host: google.com
- Here we see that the request method is "GET", the URL is specified, and the protocol
- Below is the headers where we defined the "Host"
Can test with telnet
- Command line for testing connections with servers
- Doesn't work with HTTPS protocols since it is unencrypted, but can encrypt with SSL

Other Resources

HTTP can give back any type of file not just HTML
- CSS, JS, IMG, SVG, etc.
Usually, an HTTP request is made to get the document HTML which contain links to other resources such as CSS and JS files
- These links are used in additional HTTP requests to get the necessary files

HTTPS

Typically in an HTTP request, two trips are made
- One from the client to server requesting the resources
- One from the server to client giving back the requested resources
With more content and links inside the HTML document, additional HTTP requests have to be made over the Client/Server connection
In all of these connections, someone can listen in and also receive the packets of data if the connection is not encrypted
HTTPS was made just for that purpose, to encrypt the entire connection from client to server
In HTTPS everything is encrypted from the query parameters to the headers except for the domain name and the port
This may require additional computation to encrypt the request and also decrypting the request but HTTP/2 is faster due to:
- Header compression
- Resource Multiplexing
- Server push - push more than one resource, HTML, CSS, and JS in one response

HTTP/2

HTTP/2 is the latest, standardized version of the HTTP protocol
It is completely backwards compatible and aimed to reduce the inefficiencies of HTTP/1.1
It has the following new features:
- Request and response multiplexing
- Header Compression
- Server Push
- Binary Communication

Multiplexing

Before only one request could be served per TCP connection
Now HTTP/2 allows for request/response multiplexing over a single TCP connection, allowing the server to serve multiple requests over a single connection
Made these obsolete:
- Image sprites (packing multiple images into one to make one request)
- Domain sharding (hack to prevent browser limit of simultaneous connections to same domain)

Headers Compression

HTTP/2 compresses the header information which makes it much lighter and require less data

Server Push

Allows the server to push multiple responses for a single request
If the server gives back an HTML document as a response, most likely, there are CSS and JS files that are being requested as well, so it will send those as well
Server can decide to send resources that may be needed in future requests and have the client cache it

Binary Communication

HTTP/2 uses binary communication which is easier to parse, more compact, and less error prone

HTTP Request Example

Should Make Blog Post / Visualization diagram

Analyzing the URL Request

When something is typed into the URL address bar, if not all the information is provided, it is automatically filled out
- Ex. flaviocopes.com, browser will by default prepend http://www to it, making it http://www.flaviocopes.com

DNS Lookup Phase

There is a whole process to get the host server IP address
1. Checks the local DNS cache to find the domain
2. If not found, the browser uses the gethostname POSIX system call to get the host information
3. The system call first checks /etc/hosts to see if the system provides the information locally (makes it a localhost)
4. If not there (which is most cases) it makes a request to the DNS server provided by the ISP using the UDP protocol
5. The ISP DNS server can have the domain in its cache, but if it doesn't it goes to the root DNS server which resolves the "www" part of the URL
6. The root DNS server knows the IP address for the DNS servers that resolve every type of extension (.com, .gov, .edu, etc) called top level DNS servers
7. After matching the extension to the right top level DNS server, the request is forwarded to that top level DNS server
8. The DNS resolver then caches the root DNS server so it doesn't have to look it up again
9. The top level DNS server then has a list of registered domain names and their IP addresses
10. When buying a domain name, the domain registrar sends the top level DNS server the server name and IP address, the hosting provider provides a bunch of DNS servers to host the website
11. These DNS servers have the associated domain name to the IP address and thus the corresponding IP address is found and returned

TCP Request Handshaking

Now that the server IP address is found, the browser can initiate a TCP connection to the IP address
- This connection requires a bit of sending data back and forth before being able to send data

Sending the request

Requests are plain text documents written in a certain precise way:
The request has 3 parts:
1. The request line
  - Sets (on a single line)
    - HTTP method
    - Resource locationo
    - Protocol Version
  - Ex. GET / HTTP/1.1
2. The request header
  - Sets key : value pairs that contain information about the request, terminated by a blank line
  - 2 mandatory fields:
    1. Host - Domain name to target
    2. Connection - Whether to keep connection open or closed after
  - Ex. Host: flaviocopes.com Connection: close
3. The request body
  - Contains data in the form of JSON
  - Ex. { data: { some_text } }

The response

Server processes the HTTP request and sends back a response
Starts with status code and a message
- Ex. 200 OK
The response also includes the request headers and the response body

Parse the HTML

The browser, which now has the requested HTML will parse it and repeat the same process (for HTTP/1.1) for CSS files, images, JS, etc.

Websockets

Websockets are an alternative to the HTTP protocol
Unlike HTTP, websockets are a long-lived connection meaning once the connection is open and a message is sent, it usually stays open
Some differences between HTTP and Websockets
- Server can send data to client without the client requesting it
- Client and server can talk to each other simultaneously
- Low latency communication since little data overhead is needed to send a request
Websockets are better for long-lived and real-time connection
HTTP is better for occasional data exchange and interactions initiated by the client
HTTP is simpler to implement and Websockets require a bit more sophistication
Secured protocol for Websockets is wss://, ws:// is the unsafe version

The Web Platform Ecosystem

The Web Platform Ecosystem

Introduction To Web

Born on the concept of documents being linked together

The Big Picture

When opening a webpage a request is made to the server
Connection is made using a protocols such as HTTP, IP, TCP
HTML is used to structure pages, CSS customizes how the pages look, Javascript is used to program the webpages so that they are interactive

How Websites Work

In the end, websites are just HTML files that are served through a server
If there is not much Javascript, it is called a website
If there is a lot of Javascript and it changes how the page works, it is called a web application

How WebApps Work

A web application is an application that runs inside the browser
Nowadays, the Web is an application platform for applications to run inside the browser
The web is a platform that runs other programs

Web Browsers

4 Main Web Browsers, Chrome, Safari, Firefox, Edge, that all comply to a set of standards and rules defined by W3C
Browsers offer APIs that allow you to create code to interact with the computer
Main task of the browser is to get input from the user, through the URL or bookmarks or links, and then internally look up the webpage to contact the server for the files to give to the client
Browsers also provide debugging tools for developers

Web Servers

A server is a software that responds to requests made by clients
The web has a client/server model where one server typically serves many clients
Clients are generally web browsers running the frontend code that are served from the servers, but can also be scripts or programs in a computer
Server is the hardware that allows the server to run, in modern technology, the server is usually cloud based
